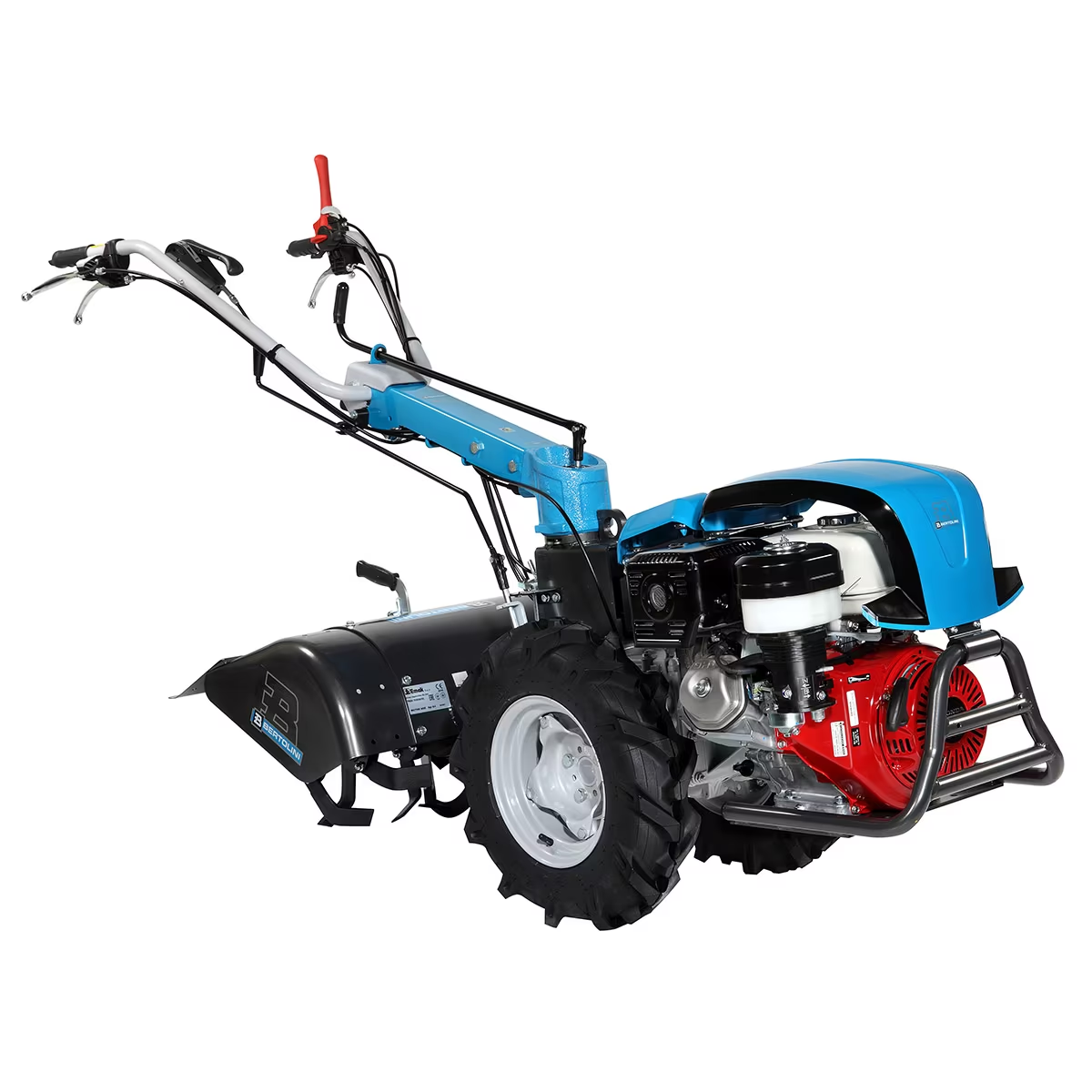

417 S
417 S
The 417 S two-wheel tractor delivers professional-grade power and features, making it ideal for tilling, root crop harvesting, and plowing on any type of terrain. It offers outstanding ease of use and versatility while ensuring safe operation on all types of terrain, thanks to its self-locking differential and 5-speed gearbox.
SKU:
Technical Specifications
Engine
Honda GX390 OHV
Horsepower
11.7 HP
Displacement
389 cm3

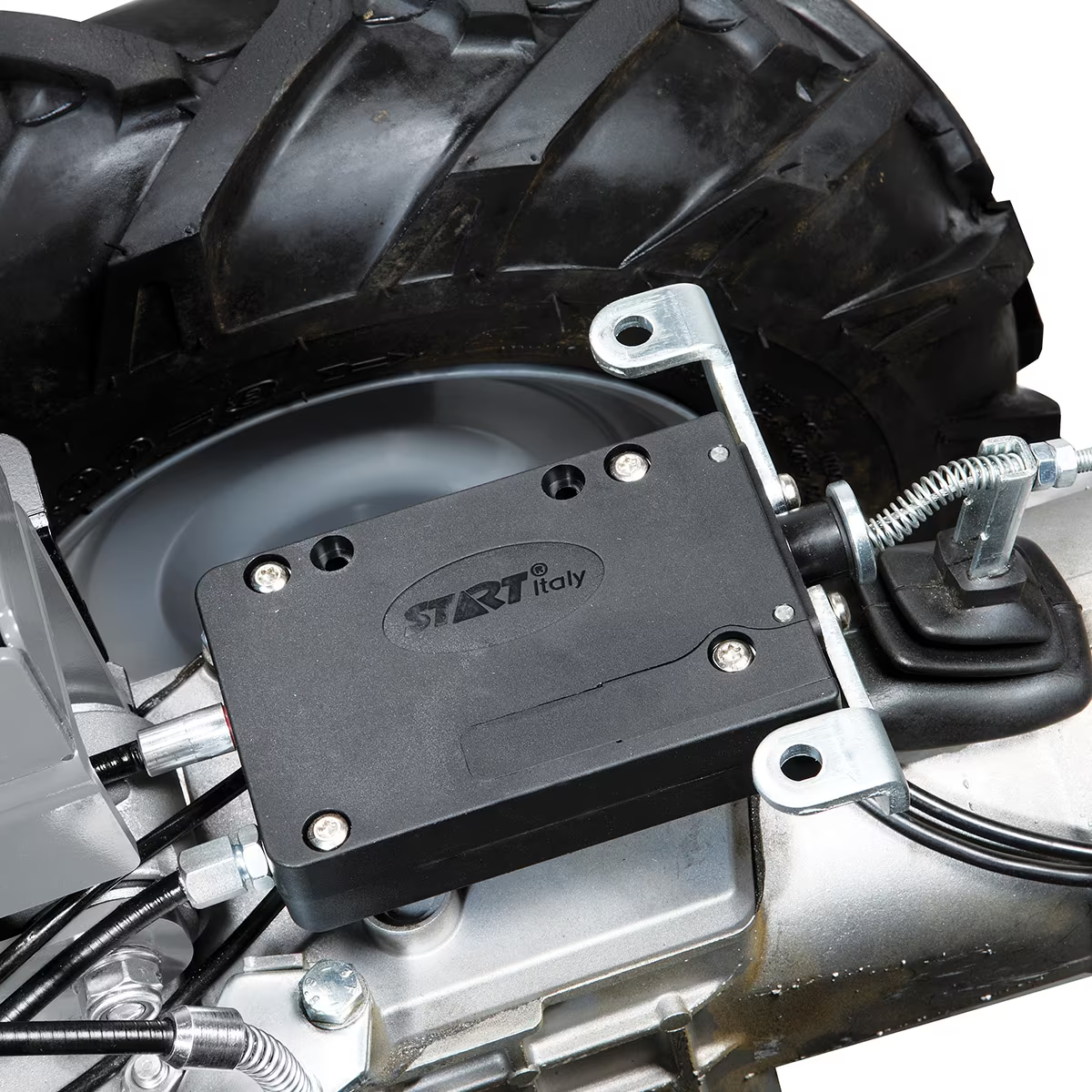

Starting
recoil or electric start available

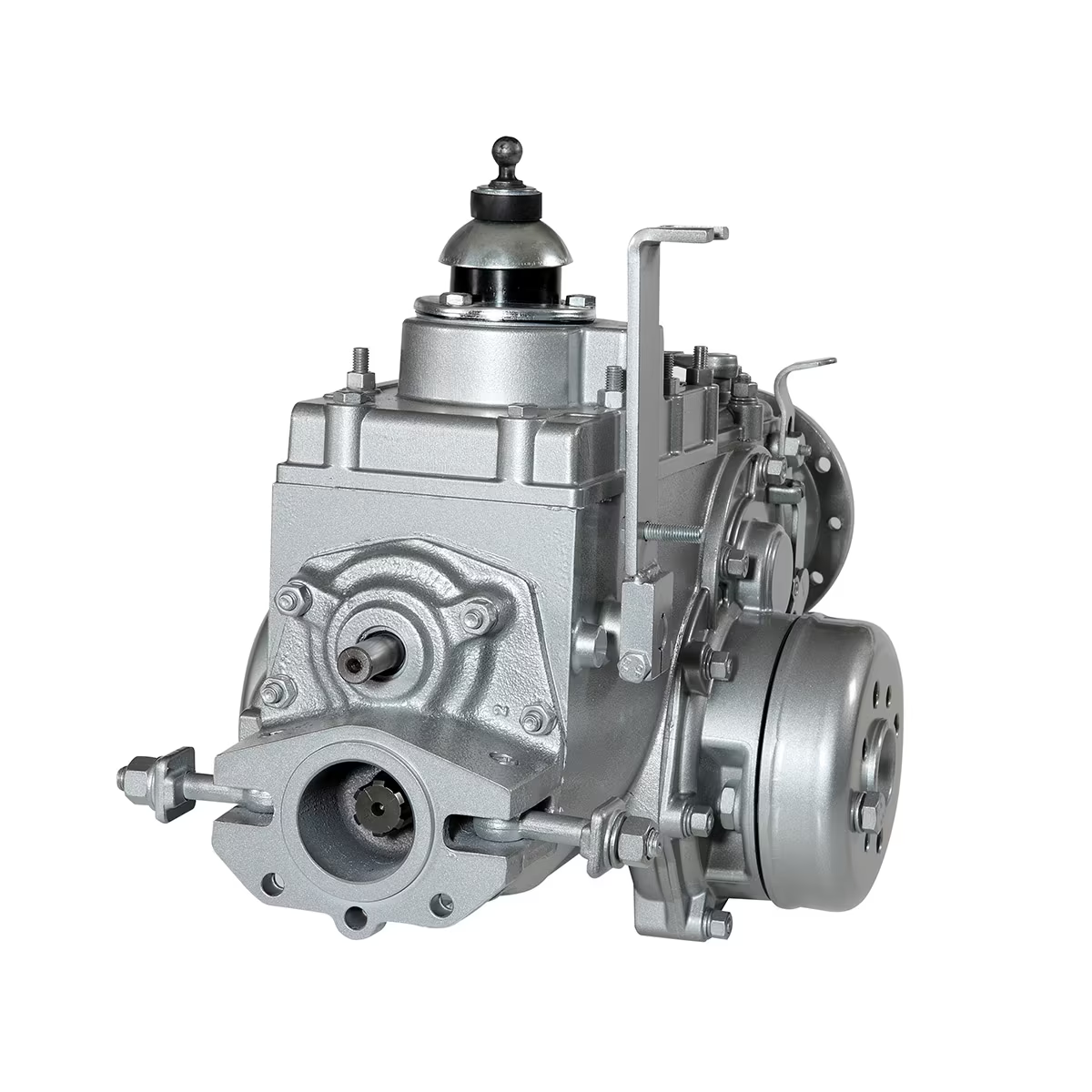

Transmission
oil-bath gearbox
Gearbox
5-speed (4 forward + 1 reverse)
Gear speeds
1: 1.20, 2: 2.25, 3: 4.00, 4: 8.80, 1R: 3.10
Clutch
dry mono-disc
Handlebars
180° reversible with vertical and horizontal adjustment and anti-vibration device
Shuttle shift
yes
Differential
yes
Brakes
yes
Power takeoff
2 power take-offs: one independent 2-speed PTO (1° 540 rpm - 2° 900 rpm) and one synchronised PTO
Attachment method
flanged to PTO
Towing hitch
yes

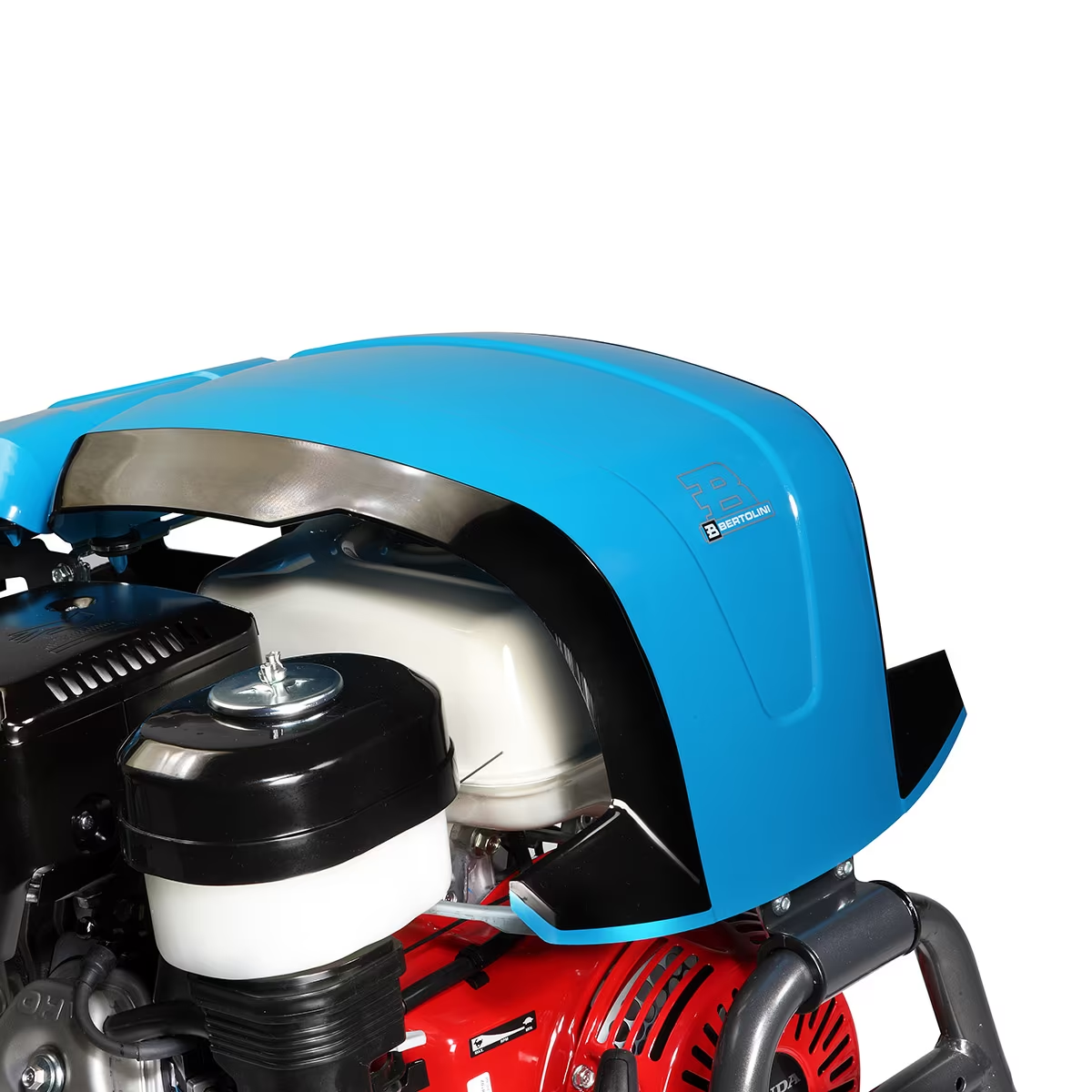

Cowling
yes, with integral tool compartment/battery box
Weight
551 lbs (with engine, rotor and wheels)
Available Models
Order Code
Model
Displacement
Power
Starting
Notes
68339144US
Honda GX390 OHV
389 cm3
11.7 HP
recoil start
-
68339145US
Honda GX390 OHV
389 cm3
11.7 HP
electric start / recoil backup
battery not included
